Waste tyre pyrolysis plant adopts innovative technology to solve the problem how to recycle tyre. Pyrolysis of tyres is a thermochemical process to turn waste tyre into oil devoid of oxygen. Under the high temperature, oil (condensable), combustible gas (non-condensable), steel wire and carbon black will be generated. At the present time, the fast shipment, installation and training service are available.
In different countries, especially in developing countries, there are a large amount of waste tyres. These waste is waited to be converted into valuable resources in urgent. Accordingly, Beston tire pyrolysis plants with some new technologies are the right choice. In Turkey, the United Kingdom and Canada, there are projects Beston helped customer to establish for managing tyres.
| Batch Model | BLJ-6 | BLJ-10 |
| Daily Capacity | 6T | 8T-10T |
| Working Method | Batch | |
| Pattern | Rotary | |
| Heating Materials | Charcoal, Wood, Fuel Oil, Natural Gas, LPG, etc. | |
| Total Power | 24kw/h | 30kw/h |
| Floor Area (L*W*H) | 30*10*8m | 30*10*8m |
| Continuous Model | BLJ-16 | BLL-20 |
| Daily Capacity | 15-20T | 20-24T |
| Working Method | Semi | Fully |
| Pattern | Rotary & Horizontal | |
| Total Power | 54kw/h | 71.4kw/h |
| Floor Area (L*W*H) | 40*10*8m | 45*25*10m |
| Life Span | 5-8 Years | |
Beston has two types of tyre pyrolysis reactors (rotary and horizontal). The common points of them are strong sealing performance, high efficiency and great design. On the other hand, the differences are showed in the following table. Certainly, both of them are worthy of your investment.

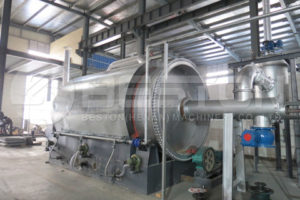

Rotary Reactor |
| Working Method In the pyrolysis process, waste tyre is rotated continuously. Therefore, the blockage won’t happen. In addition, the variable-frequency motor and frequency converter can adjust the rotary speed according to the actual situation. |
| Capacity This kind of equipment can handle 6-20 tons of waste tyre per day. At the present, Beston has three models (BLJ-6, BLJ-10 and BLJ-16) to satisfy your demand. |
| Insulation Performance There is 80 mm thermal insulation cotton between the space of the casing and the reactor. As a result, heat preservation effect and safety (avoid scalding) can be guaranteed. |
Horizontal Reactor |
| Working Method It has double layers. Firstly, the waste tyre enters into reactors from one side. Then the tyre goes through U shaped route and changed into oil. Lastly, the oil will be discharged at the same side. |
| Capacity This type is suitable for dealing with a large number of waste tyre (20-24T/D). |
| Automatic Level Due to large feeding, this reactor can work continuously without stop in 24 hours. But, how to save manual labor and improve security (reduce oxygen)? Actually, this reactor is equipped with automatic screw feeder and automatic screw discharger. |
Some technologies can effectively take advantage of waste combustible gas into new use and reduce the smoke pollution. Therefore, in terms of environmental-friendly project, it is a good choice.
In the tires pyrolysis plant, some gas goes through the condenser and the manifold. Then it enters into the chamber to burn again. Besides, it can be stored for other uses.
In the end of this process, there is smoke removal process to clean the waste smoke. After processed by this step, the discharged smoke is without pollution.
| Products | Usage |
| Tyres Pyrolysis Oil | • Investor can sell it directly. |
| • It can be reprocessed into diesel by waste oil distillation machine. | |
| • It is good fuel for iron factory, power plant, cement factory, restaurant, etc. | |
| Carbon Black | • It can be sold directly. |
| • It can be reprocessed into high-quality carbon by the carbon black processing plant. | |
| • It is good material for making carbon brick by briquetting equipment. | |
| Steel Wire | •It can be sold directly. |
| Combustible Gas | • It is good fuel option for heating the reactor. |
Design modular configuration. The continuous machine adopts modular design. For this reason, it makes the tyre pyrolysis plants transportation and installation more convenient.
Employ various parts to guarantee safety of waste tire pyrolysis machine. There are many safety parts, like explosion-proof system, alarming system, the system to relieve pressure automatically.
Beston is the most reputable one among many tyre pyrolysis plant manufacturers in China. We have professional groups, like salesperson, engineer, technician. From manufacturing to delivering, we arrange experienced workers to monitor the process. Consequently, Beston is able to guarantee the quality and the shipment. In addition, we also have comprehensive service, for example, turnkey project. It saves your time and minimizes your budget. In short, if you have other requirement about pyrolysis tyre plant, consult us right now.
Before pyrolysis, waste tyre usually needs dealing with by pretreatment machine. Firstly, the steel wire will be dragged out. Secondly, waste tyre will be cut to no more than 2cm.
Push tyre into reactor and heat the chamber. When temperature is up to 180℃, we can get oil gas. When temperature reaches to 280℃, oil production process basically finishes. In this case, oil will drop into oil tank. Meanwhile, oil gas can be recycled to provide heat for reactor again. Of course, waste oil gas in the reactor will enter into a series of procedures, like cooling, removing sulfur. Finally, it is safe to directly reuse processed oil gas.
There are some waste smoke whose temperature reaches to 200℃. After processed by dedusting system, the waste smoke meets emission standards. The procedures are water washing, waster spray and ceramic ring absorption. What’s more, the final temperature of smoke is about 75℃.
To sum up, Beston tyre pyrolysis plant for recycling waste has been developed rapidly. It is appropriate for handling rubber, oil sludge and plastic as well. That’s the reason it is popular in recent years. At this time, tell us your demand for the tire pyrolysis equipment. Therefore, we provide customized service for you.
FAQ: |
1. Is it Important to Make Sure the Raw Material?Yes, it is extremely important. Firstly, make it clear that how many tons raw material you can collect per day. Secondly, understand the local oil market for tyre oil. After getting a available channel to get waste tyre and sell oil easily in local area, you have a good start for doing this business. |
2. Is there any Detailed Tyre Pyrolysis Plant Project?Yes, there is. As so far, all kinds of models (BLJ-6, BLJ-10, BLJ-16, BLL-20) have successful cases. If you wanna know further information, consult us. We will reply you as soon as possible. |
3. How is the Sealing Effect of Tyre Pyrolysis Machine?In order to guarantee the sealing effect, we have several procedures. Firstly, the screw sealing automatic feeder can reduce the entering of oxygen. Secondly, several parts strengthens the sealing effect, such as sealing ring, etc. |
4. How to Calculate the Budget?Normally, you should put the several cost into consideration. They are cost of tyre pyrolysis machinery, cost of electricity and water, cost of labor, etc. |
5. Do You have Branch Office Overseas?Undoubtedly, we have several branch offices in in Europe, Central Asia, and Southeast Asia. Welcome your arrival at any time. |
